HORNOS ELÉCTRICOS | ELECTRIC KILNS

Ofrecemos venta, exportación y consejos para instalación de plantas  y fabricas de cerámica | We offer consulting and equipment for ceramic factories and social projects-worldwide.

FOR ORDERS/ CONSULTING/ EXPORT, PLEASE CALL 954 - 323.2024 |  954 - 778.8543  | E-MAIL

HORNOS ELECTRICOS

ELECTRICAL KILNS

 Model - 1023HE

240v or 208v

Model 2527HE

HE/240v or 208v

 Model 2523HE

240v or 208v

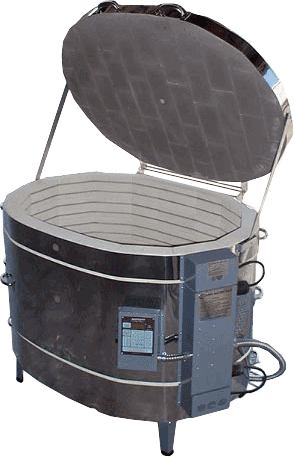

Model 3027HE

240v or 208v

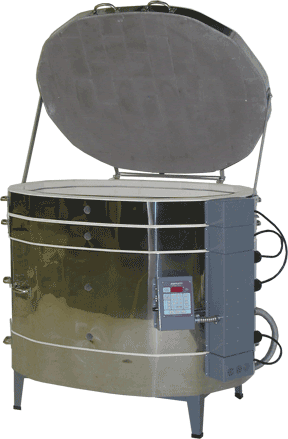

 Model 3031H

(H for high temperature)

HORNOS ELECTRICOS

ELECTRICAL KILNS

 1.350C   CAPACITY 3M3 (81CF)

    Inside dimensions: 17 ½ " wide x 18" deep, 3" brick, fires to cone 10/2350°F (cone 8 version available) Inside dimensions: 25 " front-to-back, 37" wide x 29" deep, fires to cone 10/2350°F, built with 3" brick. Model comes with stand, four peephole plugs, Inside dimensions: 25 " front-to-back, 37" wide x 29" deep, fires to cone 10/2350°F, built with 3" brick. Model comes with stand, four peephole plugs, Inside dimensions: 30" front-to-back x 37" wide x 24 ½" deep, fires to cone 10/2350°F, built with 3" brick Inside dimensions: 30" front-to-back x 42" wide x 33 ½ " deep, fires to cone 10/2350°F, built with 3" brick
3" Special Brick | Instruction manual (ENGLISH) + warranty card |One-year warranty

This equipment is ideal for schools, social projects, small and medium start-up factories, glass, ceramic, stoneweare and decal firing.

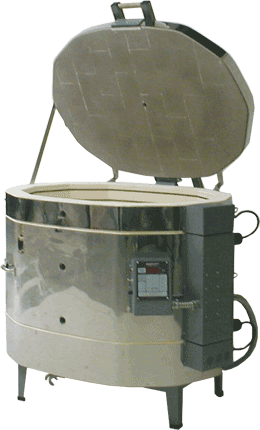

Special Offer MODEL 2531 (H for high temperature) equipped with electronic controller and shown with counter weight lid system option.  Model - 2531HE w Ctr Wgt/240 or 208v
Inside dimensions: 25 " front-to-back, 37" wide x 29" deep, fires to cone 10/2350°F, built with 3" brick. Model comes with stand, four peephole plugs, instruction manual, and warranty card | One-year warranty
Price US $2,999.99 | Accesories Extra
FOB TEXAS | WE EXPORT | DELIVERY IN 1-3 WEEKS AFTER PAYMENTS
TOP ELEMENT $99.99 | FLOOR ELEMENT $99.99
POSTS $150.00: 10X6' + 10 X 8" + 10 X 10" + 36 X 1"
KILN FURNITURE: $350.00:  6 HALF MOON 25" + 3 11X22 RECTANGULAR
SHIIPING & EXPORT: UPON EACH PR0OJECT

We provide consulting to start-up factories and social projects.

We are the first factory to produce refractory ceramic dinnerware for commercial, industrial and home for use in oven and microwave. The factory was founded in Venezuela, in 1987 by Hedi and Zaida Enghelberg, and is the biggest ceramic refractory ceramic (Pyrex type), using local material, with 750.000 pieces maximum output capacity.  We have a special formula for this ceramic paste, called Electric Stoneware 1300.  It is the only factory in South America using large electrical kilns (ovens), made by Nabertherm, Germany, with over 3M3 capacity.

We produce vitrified decals, from 570C to 1200C, as a hand-made serigraphic, that can decor glass, ceramic and porcelain, It is the only commercial factory in Venezuela and in the word there is a club of about 80-100 well know ceramic decals factory with our capacity.

This is a very special and dedicated niche and we are a leader, that rivals only with similar factories in Japan, China, Germany, France, Spain, Italy, Portugal. We have received in 1989 guidance and consulting from one of the ceramic engineers of that was working for the famous Villeroy-Boch factory.

Concentración de productos y servicios de alta calidad  en un solo proveedor confiable y constante.

CALCOMANÍAS - STONEWARE - PORCELAIN

Atmósfera controlada por computadora central.

All matrials are refractory, good in oven, microweave and dishwasher safew, for industrial-hotel grade.

 mixture: ceramic base, caolin, feldespar, silica, zirkonium, sodium silica, etc.

mesh:  120 - 240 mesh    Vicentini Equipment

Temperature max. : 1.350 celsius, monococion or bisque& glaze firing Glaze: ferrum, iso 9000, 9002

Electrical Oven, Computer Controled Nabertherm - Germany

Please note that the Cone Chart gives 3 different temperatures for each cone number. As discussed above, the equivalent cone temperature depends upon how fast one gets to it. Generally speaking, the temperatures in the 108°F - 60°C column are used when discussing ceramics, porcelain, china and pottery.

Pyrometer Users: Because of the time/temperature relationship of the cone, it's not recommended that you attempt to calibrate a pyrometer using a cone.
Heating Rate °/hour During Last 90 to 120 Minutes of Firing

Cone   27°F - 15°C 108°F - 60°C 270°F - 150°C
022     1087°F - 586°C 1094°F - 590°C
021     1112°F - 600°C 1143°F - 617°C
020     1159°F - 626°C 1180°F - 638°C
019   1213°F - 656°C 1252°F - 678°C 1283°F - 695°C
018   1267°F - 686°C 1319°F - 715°C 1353°F - 734°C
017   1301°F - 705°C 1360°F - 738°C 1405°F - 763°C
016   1368°F - 742°C 1422°F - 772°C 1465°F - 796°C
015   1382°F - 750°C 1456°F - 791°C 1504°F - 818°C
014   1395°F - 757°C 1485°F - 807°C 1540°F - 838°C
013   1485°F - 807°C 1539°F - 837°C 1582°F - 861°C
012   1549°F - 843°C 1582°F - 861°C 1620°F - 882°C
011   1575°F - 857°C 1607°F - 875°C 1641°F - 894°C
010   1636°F - 891°C 1657°F - 903°C 1679°F - 915°C
09   1665°F - 907°C 1688°F - 920°C 1706°F - 930°C
08   1692°F - 922°C 1728°F - 942°C 1753°F - 956°C
07   1764°F - 962°C 1789°F - 976°C 1809°F - 987°C
06   1798°F - 981°C 1828°F - 998°C 1855°F - 1013°C
05-1/2   1839°F - 1004°C 1859°F -1015°C 1877°F - 1025°C
05   1870°F - 1021°C 1888°F - 1031°C 1911°F - 1044°C
04   1915°F - 1046°C 1945°F - 1063°C 1971°F - 1077°C
03   1960°F - 1071°C 1987°F - 1086°C 2019°F - 1104°C
02   1972°F - 1078°C 2016°F - 1102°C 2052°F - 1122°C
01   1999°F - 1093°C 2046°F - 1119°C 2080°F - 1138°C
1   2028°F - 1109°C 2079°F - 1137°C 2109°F - 1154°C
2   2034°F - 1112°C 2088°F - 1142°C 2127°F - 1164°C
3   2039°F - 1115°C 2106°F - 1152°C 2138°F - 1170°C
4   2086°F - 1141°C 2124°F - 1162°C 2161°F - 1183°C
5   2118°F - 1159°C 2167°F - 1186°C 2205°F - 1207°C
5-1/2   2133°F - 1167°C 2197°F - 1203°C 2237°F - 1225°C
6   2165°F - 1185°C 2232°F - 1222°C 2269°F - 1243°C
7   2194°F - 1201°C 2262°F - 1239°C 2295°F - 1257°C
8   2212°F - 1211°C 2280°F - 1249°C 2320°F - 1271°C
9   2235°F - 1224°C 2300°F - 1260°C 2336°F - 1280°C
10   2284°F - 1251°C 2345°F - 1285°C 2381°F - 1305°C
